Potterycrafts is a British company and are the largest manufacturer of pottery kilns in UK. Their kilns are all made in Britain and are widely acclaimed as being robust, efficient, reliable and good looking.
Summary of Potterycrafts Kilns we supply:- Front Loader Kilns:
- Top Loader Kilns:
- Programme Controllers
If you're looking for alternatives, we also supply Tetlow Kilns.
All kilns supplied are Ceramic Fibre Free.
All parts are under 12 months warranty but not for kiln elements.
Kiln orders require confirmation letter or fax/email order letter.
Delivery period: Approx. 6 to 8 weeks
For more information regarding the product and/or the price, feel free to contact us or email us.

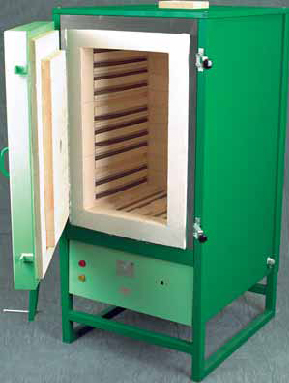

P5120, Lightmaster Kiln.
The Lightmaster Kiln is based on a more traditional Front Loading kiln, they are ideal for, professional studios, schools and colleges where reliability and durability are essential. The kilns are constructed of a durable low thermal mass insulation brick with two high grade backup insulation boards this is all enclosed within a robust high quality pressed steel powder coated frame.
Heavy duty Kanthal A1 spiral wound elements are used to heat the kiln, the elements are located in traditional grooves on both side walls and floor of the kiln to allow uniform heat distribution throughout the chamber and additionally the elements are graded from top to bottom further aiding even temperature distribution within the kiln.
All Lightmaster kilns are CE marked and have captive key interlocks fitted to break full load upon opening the kiln to comply with both UK and European legislation, in addition to this all Potterycrafts Lightmaster kilns are fitted with two contactors as standard to give greater protection against possible overfires, when used in conjunction with our range of microprocessor controllers.
Model |
Max. Temp |
Vol (cu. ft.) |
Kiln Chamber (cm)
|
Weight |
KW |
Amps (1-phase) |
Amps (3-phase) |
| P5120 | 1300 | 210 (7.25) | 45 x 63 x 73 | 310 | 11 | 50 | 20 |
| P5121 | 1300 | 250 (8.83) | 45 x 63 x 86 | 330 | 13 | 60 | 20 |
- Type 'R' thermocouples fitted as standard on UK kilns.
- Adjustable clasp door locks fitted.
- Stainless steel surround.
- Brick to brick door seal.
- All kilns are fitted with a Harting socket for easy controller connection.
- Mains power indicator.
- Wired for single or three phase connection.
- Roof and door vent as standard for venting of the kiln during firing and to aid cooling.
- All Potterycrafts front loading kilns are now all fitted with padlock provision for extra security
- 8 pcs Kiln Shelves, 41cm x 27.5cm x 1.9cm (17" x 11" x ¾ ")
- 48 pcs Assorted Kiln Props, 2.5cm, 5cm, 7.5cm, 10cm, 15cm, 18cm (1", 2", 3", 4", 6" & 7")
- 1 kg Batt Wash

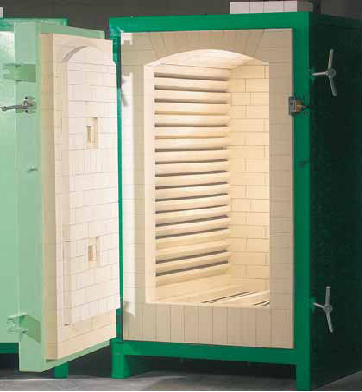

P5133, Heatmaster Kiln
The Heatmaster is a heavy industrial Front Loading kiln, they are ideal for, professional studios, colleges and universities where reliability and durability are essential. The kilns are constructed of a durable low thermal mass insulation brick with two high grade backup insulation boards, the roof is a flat arch construction again with two layers of backup insulation, this is all enclosed within a robust high quality pressed steel powder coated frame.
Heavy duty Kanthal A1 spiral wound elements are used to heat the kiln, the elements are located in traditional grooves on both side walls and floor of the kiln to allow uniform heat distribution throughout the chamber and additionally the elements are graded from top to bottom further aiding even temperature distribution within the kiln.
All Heatmaster kilns are CE marked and have captive key interlocks fitted to break full load upon opening the kiln to comply with both UK and European legislation, in addition to this all Potterycrafts Heatmaster kilns are fitted with two contactors as standard to give greater protection against possible overfires, when used in conjunction with our range of microprocessor controllers.
Model |
Max. Temp |
Vol (cu. ft.) |
Kiln Chamber (cm)
|
Weight |
KW |
Amps (1-phase) |
Amps (3-phase) |
| P5129 | 1300 | 240 (8.48) | 53 x 68 x 63 | 600 | 16 | n/a | 30 |
| P5130 | 1300 | 285 (10.1) | 53 x 70 x 77 | 600 | 18 | n/a | 30 |
| P5131 | 1300 | 300 (10.6) | 53 x 79 x 76 | 785 | 20 | n/a | 45 |
| P5132 | 1300 | 425 (15) | 60 x 90 x 75 | 1625 | 24 | n/a | 45 |
| P5133 | 1300 | 510 (18) | 60 x 90 x 90 | 1780 | 26 | n/a | 45 |
| P5134 | 1300 | 680 (24) | 60 x 90 x 120 | 2235 | 32 | n/a | 60 |
- Type 'R' thermocouples fitted as standard on UK kilns.
- Adjustable clasp door locks fitted.
- Brick to brick door seal.
- All kilns are fitted with a Harting socket for easy controller connection.
- Mains power indicator.
- Roof and door vent as standard for venting of the kiln during firing and to aid cooling.
- Manual sliding damper or autodamper options available.
- 2 Zone controller option available on models P5132, P5133 & P5134.
- Energy efficient.
- 10 pcs Kiln shelves, 55cm x 42cm x 2.5cm or 20 pcs Kiln Shelves, 27.5cm x 42cm x 2.5cm
- 8 pcs each props, 2.5cm, 5cm, 7.5cm, 10cm, 15cm & 20cm
- 24 pcs Prop Extension
- 32 pcs Collars
- 140 pcs Assorted Stilts.
- 2 kgs Batt Wash
Heatworker Kiln
The Heatworker are the backbone of Potterycrafts Front Loading kilns since their introduction, they are ideal for, professional studios, schools and colleges where reliability and durability are essential. The kilns are constructed of a durable low thermal mass insulation brick with a high grade backup insulation board this is all enclosed within a robust high quality pressed steel powder coated frame.
Heavy duty Kanthal A1 spiral wound elements are used to heat the kiln, the elements are tube mounted for optimum efficiency on both side walls and floor of the kiln to allow uniform heat distribution throughout the chamber and additionally the elements are graded from top to bottom further aiding even temperature distribution within the kiln.
All Heatworker kilns are CE marked and have captive key interlocks fitted to break full load upon opening the kiln to comply with both UK and European legislation, in addition to this all Potterycrafts Heatworker kilns are fitted with two contactors as standard to give greater protection against possible overfires, when used in conjunction with our range of microprocessor controllers.
Model |
Max. Temp |
Vol (cu. ft.) |
Kiln Chamber (cm) |
Weight |
KW |
Amps (1-phase) |
Amps (3-phase) |
| P5941 | 1300 | 86 (3.04) | 41 x 38 x 56 | 240 | 6 | 30 | 15 |
| P5942 | 1300 | 128 (4.52) | 41 x 45 x 68 | 240 | 7.5 | 40 | 15 |
| P5943 | 1300 | 171 (6.04) | 41 x 55 x 73 | 315 | 9 | 40 | 15 |
- Heatworker kilns fitted with the ST312A / ST315A range of controllers come with an additional protection relay.
- Reliable kiln highly recommended for use in schools, colleges and studios
- Brick to brick door seal
- Powder coated paint for durability
- Stainless steel surrounds
- Wired for single phase or three phase as standard
- High grade elements
- 'Power-on', 'kiln-on' warning lights
- Fitted with Harting socket for ease of controller flexibility
- 8 pcs Kiln shelves, 38cm x 24cm x 1.9cm
- 8 pcs each props, 2.5cm, 5cm, 7.5cm, 10cm, 15cm & 17cm
- 1 kg Batt Wash

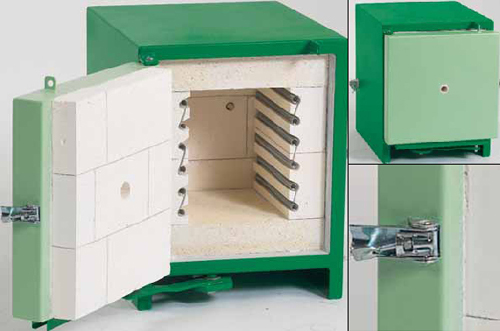

P5900 9.0 litres Test Kiln
A bench top test kiln with elements in grooved brick in two side walls. Superb little fats fire kiln for easy test firing of clays and glazes. Available with a choice of ST312A or ST315A controllers.
Model |
Max. Temp |
Vol (cu. ft.) |
Kiln Chamber (cm)
|
Weight |
KW |
Amps (1-phase) |
Amps (3-phase) |
| P5900 | 1300 | 9 (0.32) | 18 x 23 x 23 | 50 | 2.5 | 13 | n/a |
- Designed for testing clays and glazes without having to fire a large kiln
- Brick construction
- Brick to brick door seal
- Safety interlock
- High grade elements
- Energy efficient
- Can be bench mounted
Flammemaster Front Loading Gas Kiln
Model |
Max. Temp |
Vol (cu. ft.) |
Kiln Chamber (cm) |
Weight |
KW |
| P5740 | 1320C | 100L (3,53) | 43 x 51 x 46 | 250 | 20 (1 burner) |
| P5745 | 1320C | 150L (5.30) | 50 x 51 x 59 | 300 | 40 (2 burners) |
| P5750 | 1320C | 250L (8.83) | 54 x 66 x 70 | 470 | 40 (2 burners) |
| P5755 | 1320C | 350L (12.40) | 65 x 71 x 76 | 550 | 60 (4 burners) |
| P5760 | 1320C | 500L (17.70) | 60 x 84 x 99 | 630 | 60 (4 burners) |
| P5770 | 1320C | 770L (27.20) | 68 x 104 x 110 | 800 | 70 (4 burners) |
| P5780 | 1320C | 1000L (35.30) | 88 x 104 x 110 | 1000 | 80 (4 burners) |
Model |
Max. Temp |
Vol (cu. ft.) |
Kiln Chamber (cm) |
Weight |
KW |
| P5720 | 1320 | 90 (3.18) | 420 x 500 x 460 | 120 | 20 (1 burner) |
| P5730 | 1320 | 160 (5.65) | 540 x 590 x 530 | 150 | 40 (2 burners) |

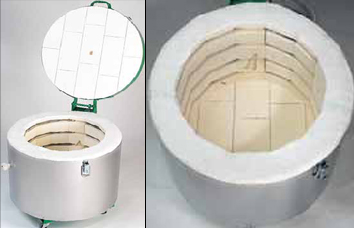

P5923 Top Loader Hobby Electric Kiln
Hobby Kilns are Potterycrafts entry level Top Loading kilns, these are ideal for domestic situations and professional studios working on a small scale.
These kilns are constructed of a low thermal mass 63.5mm thick insulation brick with a 19mm backup insulation this is then enclosed within a high grade folded stainless steel outer jacket. The kiln lid and base are constructed of the same high quality low thermal mass insulation brick which is 76mm thick.
Heavy duty Kanthal A1 spiral wound elements are used to heat the kiln, the elements are located in grooves around the side walls of the kiln to allow uniform heat distribution throughout the chamber. All top loading kilns are now fitted with 76mm castors for greater ease of movement, and two vent holes to assist with venting / cooling of the kiln during the firing process, one in the lid and a permanent vent on the side of the kiln via a chimney that can be ducted to atmosphere if required. Potterycrafts Aurora kilns are now fitted with a larger revised front box to give greater airflow over the kilns electrical components throughout the firing process and to house the kilns captive interlock safety switch. In addition this range of kilns is now fitted with two contactors to give greater protection against possible overfires, when used in conjunction with our range of microprocessor controllers.
All hobby kilns incorporate a floating hinge on the kiln lid to allow the kiln to expand freely during the firing process. This reduces the risk of cracking.
Model |
Max. Temp |
Vol (cu. ft.) |
Kiln Chamber (cm) |
Weight |
KW |
Amps (1-phase) |
Amps (3-phase) |
| P5922 | 1300 | 30 (1.06) | 40 x 23 | 42 | 3 | 13 | n/a |
| P5932 | 1300 | 30 (1.06) | 40 x 23 | 42 | 3 | 13 | n/a |
| P5936 | 1000 | 30 (1.06) | 40 x 23 | 42 | 2.5 | 13 | n/a |
- Kiln chamber Dia.40cm x D30cm, 1.41cu.ft. 40 litres.
- External size 56cm x 56cm, weight 36 kgs.
- Mounted on castors
- Full brick lid construction
- Easy to use
- Energy efficient
- High grade elements
- Maximum firing temperature 1260C, 3kw 230V, 13amp, plug in and use.
- Complete with ST314A controller (for P5923SP) or ST315A controller (for P5923MP)
- 3 x Dia.33cm Circular Batts
- 36 x 4cm Kiln Props
- 500g Batt Wash

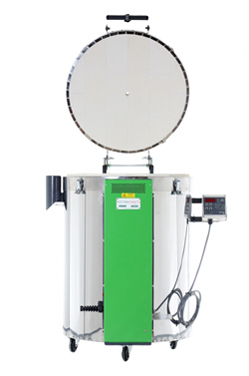

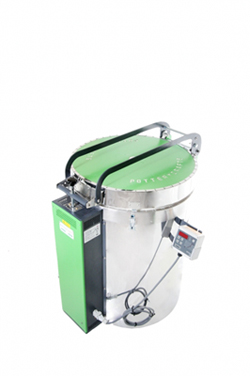

Topworker Kilns.
The robust quality of these top loading kilns appeals not only to craft potters but also to schools where they are now recognised as a highly economical alternative to front loaders. This is a range of high performance, low maintenance kilns offered at very competitive prices.
Model |
Max. Temp |
Vol (cu. ft.) |
Kiln Chamber (cm) |
Weight |
KW |
Amps (1-phase) |
Amps (3-phase) |
| P5975 | 1300 | 79 (2.79) | 45 x 45 | 74 | 5.5 | 30 | 10 |
| P5976 | 1300 | 114 (4.03) | 45 x 68 | 92 | 7 | 30 | 15 |
| P5977 | 1300 | 228 (8.05) | 64 x 68 | 140 | 11 | 50 | 20 |
| P5994 | 1300 | 151 (5.33) | 64 x 45 | 112 | 9 | 40 | 15 |
| P5959 | 1300 | 176 (6.22) | 64 x 53 | 122 | 9 | 40 | 15 |
- Topworker kilns fitted with the TC3300 range of controllers come with an additional protection relay
- Stainless steel lid operating with hydraulic struts to assist with the lifting and lowering of the lid
- Stainless steel body
- Brick lid contruction
- Mounted on castors 1 lockable castor
- Fitted with Harting socket for ease of controller flexibility
- Double bung system to assist with heat distribution
- High grade elements
- Energy efficient
- Designed with an emphasis on safety and reliable performance
- Perfect for school and domestic use

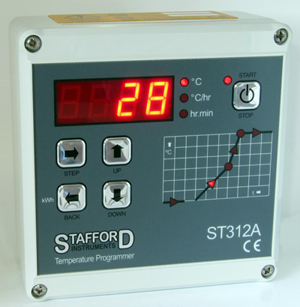

ST312A Controller.
Controller |
No. of Programmes |
No. of Segments |
No. of controlled heating/ cooling ramp |
Weight |
| ST312A | 1 | 4 | 2 + soak | Ceramics |
| ST314A | 1 | 9 | 1 + soak per segment | Glass, Ceramics |
| ST315A | 9 | 9 | 1 + soak per segment | Glass, Ceramics |
| ST316A | 9 | 9 | 2 + soak per segment | Glass, Ceramics |
| ST501A | 20 | 30 | 1 + soak per segment | Glass, Ceramics |
