Sam Mui Kuang Pottery - Tetlow Kilns

Tetlow Kilns

Product of Australia, Tetlow Kilns & Furnaces Pty Ltd have been manufacturing quality kilns for over 40 years. We are honored to be the sole distributor in the Region to supply these quality Tetlow Kilns.

Summary of Tetlow Products that we supply:

Small Kilns
Medium/Large Front Loader Kilns
Octagon Top Loader Kilns
Harco Controller - HE-NC8R (Temperature Controller)

If you're looking for alternatives, we also supply Potterycrafts Kilns.

All kilns supplied are Ceramic Fibre Free.

All models of Tetlow kilns are fitted with Harco HE-NC8 Programme Controller Kiln furniture, stainless steel casing and stand etc.

All parts are under 12 months warranty but not for kiln elements.

Kiln orders require confirmation letter or fax/email order letter.

Delivery period: Approx. 6 to 8 weeks

For more information regarding the product and/or the price, feel free to contact us or email us.

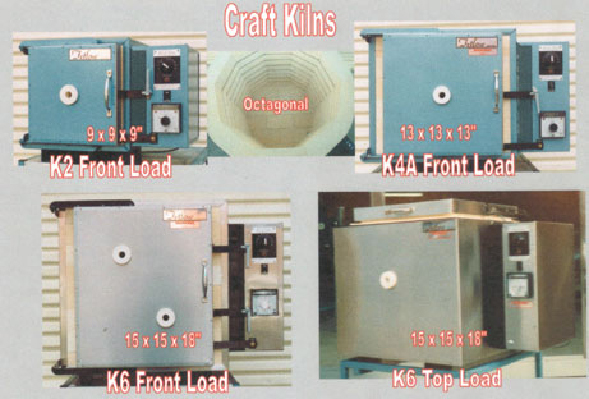

Small Kilns

Various small kilns.

Model	Vol Cu.Ft	Size Int.(")WxDxH	Volts	Phase	Amps	KW	Max. Temp	Weight (Kgs)
K1	0.2	8 x 4.5 x 9	230	1	7.5	1.8	1300C	30
K2	0.4	9 x 9 x 9	230	1	10	2.4	1300C	40
K3	0.5	13 x 13 x 4.5	230	1	10	2.4	1300C	50
K4	0.9	13 x 13 x 9	230	1	15	3.6	1300C	50
K4A	1.4	13 x 13 x 13	230	1	15	3.6	1300C	56
K4B	1.74	13 x 13 x 18	230	1	20	4.8	1300C	80
K6	2.3	15 x 15 x 18	230	1	26	6.2	1300C	92
K6GL	2.3	18 x 18 x 12	230	1	26	6.2	1300C	92
K6A	3.2	15 x 15 x 24	230	1	30	7.2	1300C	126

^{GO UP}

Medium/Large Front Loader Kilns

Medium Kiln.

Model	Vol Cu.Ft	Size Int.(") WxDxH	Volts	Phase	Amps	KW	Max. Temp	Weight (Kgs)
K7	3.4	18 x 18 x 18	230	3	10 x 3	2.4 x 3	1300C	200
K8B	5.06	18 x 18 x 27	230	3	15 x 3	3.5 x 3	1300C	220
K8C	5.6	18 x 18 x 30	230	3	20 x 3	4.8 x 3	1300C	250
K9	6.8	18 x 18 x 36	230	3	20 x 3	4.8 x 3	1300C	375
K9A	6.25	20 x 20 x 27	230	3	20 x 3	4.8 x 3	1300C	220
K9B	7.0	22 x 22 x 25	230	3	22 x 3	5.3 x 3	1300C	220
K9C	7.0	20 x 20 x 30	230	3	22 x 3	4.8 x 3	1300C	280
K10	8.0	24 x 24 x 24	230	3	23 x 3	5.5 x 3	1300C	375
K11	9.0	18 x 24 x 36	230	3	25 x 3	6.0 x 3	1300C	375
K11A	10.0	24 x 24 x 30	230	3	25 x 3	6.0 x 3	1300C	450
K12	12.0	24 x 24 x 36	230	3	28 x 3	6.6 x 3	1300C	475
K12A	18.0	24 x 24 x 54	230	3	45 x 3	10.5 x 3	1300C	575
K13	24.0	24 x 24 x 72	230	3	52 x 3	12.5 x 3	1300C	675
K13B	27.0	24 x 36 x 54	230	3	55 x 3	13.2 x 3	1300C	-
K14	32.0	27 x 27 x 76	230	3	55 x 3	13.2 x 3	1300C	-

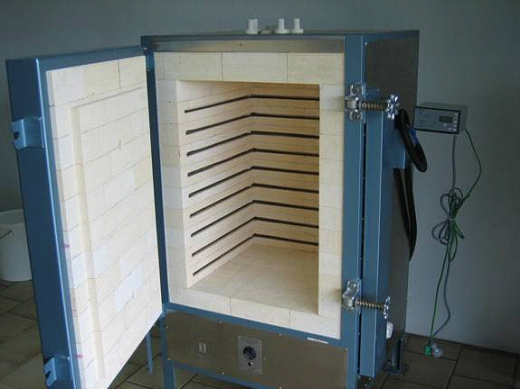

Model K9C F/L.

Model K9C F/L

Volume: 7.0cu.ft. or 200 litres
External Dimension: W41" x D39" x H59" (1041mm x 990mm x 1498mm)
Internal Dimension: W20" x D20" x H30" (508mm x 508mm x 762mm)
Weight: 280kgs
Power: 3 phase (415V), 14.4Kw, 20amp.
Controller: HARCO HE-NC8R, 8 Programmes with 8 segments for each programme
Furniture Set:
- 4 pcs Kiln Shelves, 18" x 18" x ¾"
- 6 pcs each Kiln Props, 1", 2", 3", 4", 6" & 8"
Other Features:
- Stainless Steel Casing
- Power Regulator, Contactor for temperature control

^{GO UP}

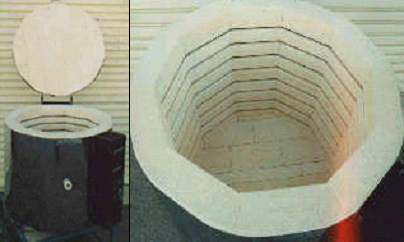

Octagon Top Loader Kilns

Octagon Top Loader Kiln.

Model	Dia (")	Height	Cu.ft.	Litre	Phase	Volt	Amp	Kw
1	11	10.5	0.69	19	1	240	10	2.4
2	11	15	1.0	28	1	240	15	3.6
3	14	15.5	1.47	42	1	240	15	3.6
4	17.5	20	3.0	86	1	240	25	6.0
5	17.5	25.5	3.67	104	1	240	30	7.2
6	23	20	5.0	142	2	415	20	9.6
7	23	29	7.28	206	3	415	17.5	12.6
8	23	33.5	8.4	238	3	415	17.5	12.6
9	28.5	29	10.9	208	3	415	20	14.4

^{GO UP}

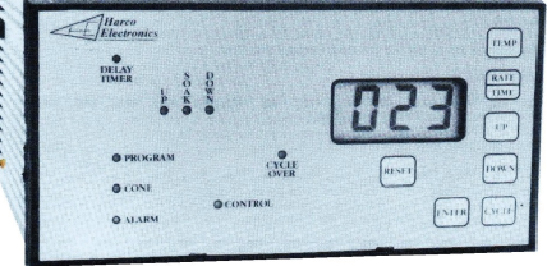

Harco Controller - HE-NC8R (Temperature Controller)

Harco Controller - HE-NC8R.

The Harco HE-NC8R Programmable Controller with 8 programmes and each programme with 8 stages (segments) and delay timer start. It is ideal for multi ramp / soak complicated firing schedules, crystalline glaze firing and glass firing programmes.
